Promega Corporation

PowerPlex® CS7 System, Custom

The PowerPlex® CS7 System, Custom, is a multiplex STR assay for relationship testing and human identification. The PowerPlex® CS7 System, Custom, allows co-amplification and three-color detection of seven STR loci, including LPL, F13B, FESFPS, F13A01, Penta D, Penta C and Penta E. All seven loci are amplified simultaneously in a single tube and analyzed in a single injection. The PowerPlex® CS7 System, Custom, contains two loci, Penta D and Penta E, that overlap with the loci included in the PowerPlex® 16 and PowerPlex® 16 HS Systems. This feature allows the PowerPlex® CS7 System, Custom, to be...

Expand to Read More »

  • Share
  • Print
  • Email
  • Products
  • Specifications
  • Figures & Tables
  • Product Resources
  • Patents & Disclaimers
  • Prices valid for customers of Promega AG only
Product Size Conc. Catalog # *List Price Order QTY Add to Cart

PowerPlex® CS7 System, Custom

Close Window

PowerPlex® CS7 System, Custom

 Components

  • 2800M Control DNA

    DD710A1 x 25μl
  • Internal Lane Standard 600

    DG107A1 x 150μl
  • PowerPlex® CS7 Allelic Ladder Mix

    DG147B1 x 50μl
  • PowerPlex® CS7 10X Primer Pair Mix

    DK157B1 x 250μl
  • PowerPlex® HS 5X Master Mix

    DP101A1 x 500μl
  • Water, Amplification Grade

    DW099A2 x 1,250μl
100 reactions
- X6613 CHF 1 700.00 Add to cart


Available Separately

PRODUCT SIZE CONC CATALOG # *List Price ORDER QTY. Add to Cart

Internal Lane Standard 600

Close Window

Internal Lane Standard 600

 Components

  • Internal Lane Standard 600

    DG107A1 x 150μl
  • Blue Dextran Loading Solution

    DV435A1 x 1ml
  • Bromophenol Blue Loading Solution

    DV437A1 x 1ml
Close Window
  • This product can be added to a

  • Helix Freezer

This product is available through the Promega Helix onsite stocking program in a –20°C Helix Freezer. The program offers numerous convenient solutions to meet your lab's needs. Helix Freezers are available in two sizes: 5.7 cubic ft. or 9.7 cubic ft.


Click here to learn more about the Helix Collection »


Already a Helix Customer?

Login to request to add this product to your Helix »


150μl
- DG1071 CHF 360.00 Add to cart

Water, Amplification Grade

Close Window

Water, Amplification Grade

 Components

  • Water, Amplification Grade

    DW099A5 x 1,250μl
Close Window
  • This product can be added to a

  • Helix Cabinet, Freezer, Refrigerator

This product is available through the Promega Helix onsite stocking program in a room temperature cabinet, a –20°C Helix Freezer or a +4°C Helix Refrigerator. The program offers numerous convenient solutions to meet your lab's needs.


Click here to learn more about the Helix Collection »


Already a Helix Customer?

Login to request to add this product to your Helix »


6,250μl
(5 × 1,250μl)
- DW0991 CHF 47.00 Add to cart

2800M Control DNA

Close Window

2800M Control DNA

 Components

  • 2800M Control DNA

    DD710A1 x 25μl
25μl
10ng/μl DD7101 CHF 160.00 Add to cart

2800M Control DNA

Close Window

2800M Control DNA

 Components

  • 2800M Control DNA

    DD725A1 x 500μl
500μl
0.25ng/μl DD7251 CHF 170.00 Add to cart

9947A DNA

Close Window

9947A DNA

 Components

  • 9947A DNA

    DD100A1 x 250ng
Close Window
  • This product can be added to a

  • Helix Freezer

This product is available through the Promega Helix onsite stocking program in a –20°C Helix Freezer. The program offers numerous convenient solutions to meet your lab's needs. Helix Freezers are available in two sizes: 5.7 cubic ft. or 9.7 cubic ft.


Click here to learn more about the Helix Collection »


Already a Helix Customer?

Login to request to add this product to your Helix »


250ng
10ng/μl DD1001 Please Enquire

You Also May Be Interested In

Storage Conditions

Store at –20°C.

For product intended use please see Patents & Disclaimers tab.

Figures

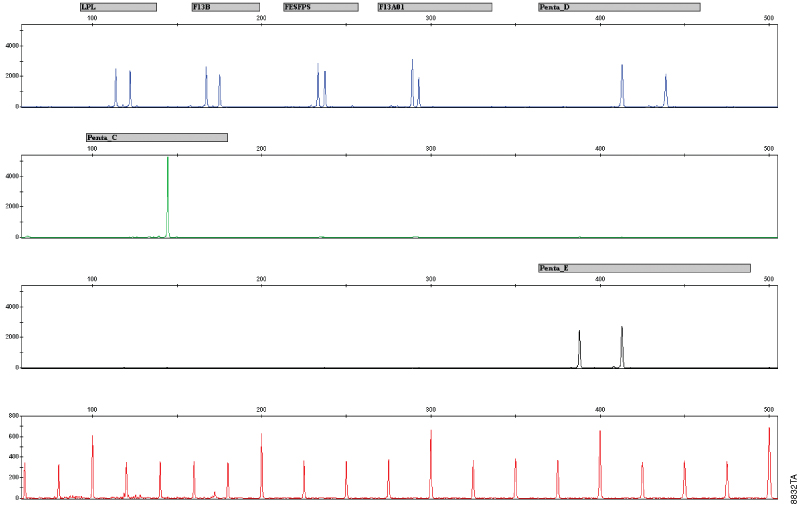

The PowerPlex CS7 System, Custom.Figure 1. The PowerPlex® CS7 System, Custom.

A single-source template DNA (0.5ng) was amplified using the PowerPlex® CS7 10X Primer Pair Mix. Amplification products were mixed with Internal Lane Standard 600 and analyzed with an Applied Biosystems 3130 Genetic Analyzer using a 3kV, 5-second injection. Results were analyzed using GeneMapper® ID software, version 3.2, and PowerPlex® CS7 panel and bin files. Please see the protocol for more details.

A single-source template DNA (0.5ng) was amplified using the PowerPlex® CS7 10X Primer Pair Mix. Amplification products were mixed with Internal Lane Standard 600 and analyzed with an Applied Biosystems 3130 Genetic Analyzer using a 3kV, 5-second injection. Results were analyzed using GeneMapper® ID software, version 3.2, and PowerPlex® CS7 panel and bin files. Please see the protocol for more details.

/~/media/images/resources/figures/8800-8899/8832ta_800px.jpg?la=en

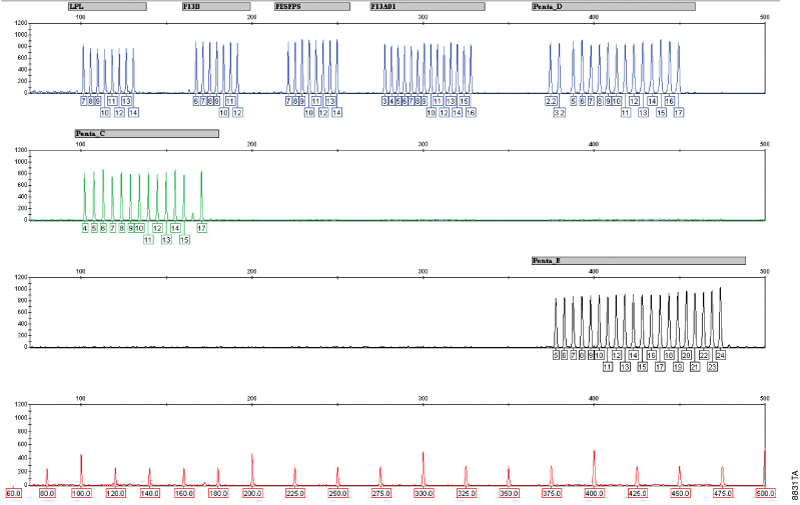

The PowerPlex CS7 Allelic Ladder Mix, Custom.Figure 2. The PowerPlex® CS7 Allelic Ladder Mix, Custom.

The PowerPlex® CS7 Allelic Ladder Mix was analyzed with an Applied Biosystems 3130 Genetic Analyzer using a 3kV, 5-second injection. The sample file was analyzed with the GeneMapper® ID software, version 3.2, and PowerPlex® CS7 panel and bin files. Please see the protocol for more details.

The PowerPlex® CS7 Allelic Ladder Mix was analyzed with an Applied Biosystems 3130 Genetic Analyzer using a 3kV, 5-second injection. The sample file was analyzed with the GeneMapper® ID software, version 3.2, and PowerPlex® CS7 panel and bin files. Please see the protocol for more details.

/~/media/images/resources/figures/8800-8899/8831ta_800px.jpg?la=en

Use Restrictions

X6613, DW0991, DD7101, DD7251, DD1001 Not For Medical Diagnostic Use.
DG1071 For Laboratory Use. Outside of the United States, this product is intended for research use only unless otherwise stated.

Patents - Disclaimers

U.S. Pat. No. 6,242,235, European Pat. No. 1088060, Japanese Pat. No. 3673175 and other patents pending.

U.S. Pat. No. 6,221,598 and Canadian Pat. No. 2,118,048.

U.S. Pat. No. 6,238,863 and other patents and patents pending.

Licensed under U.S. Pat. No. 5,587,287 and corresponding patents in other countries. For Research Use Only. Not for use in diagnostic procedures.

STR loci are the subject of U.S. Pat. No. RE 37,984, German Pat. No. DE 38 34 636 C2 and other patents issued to the Max-Planck-Gesellschaft zur Förderung der Wissenschaften, e.V., Germany.
